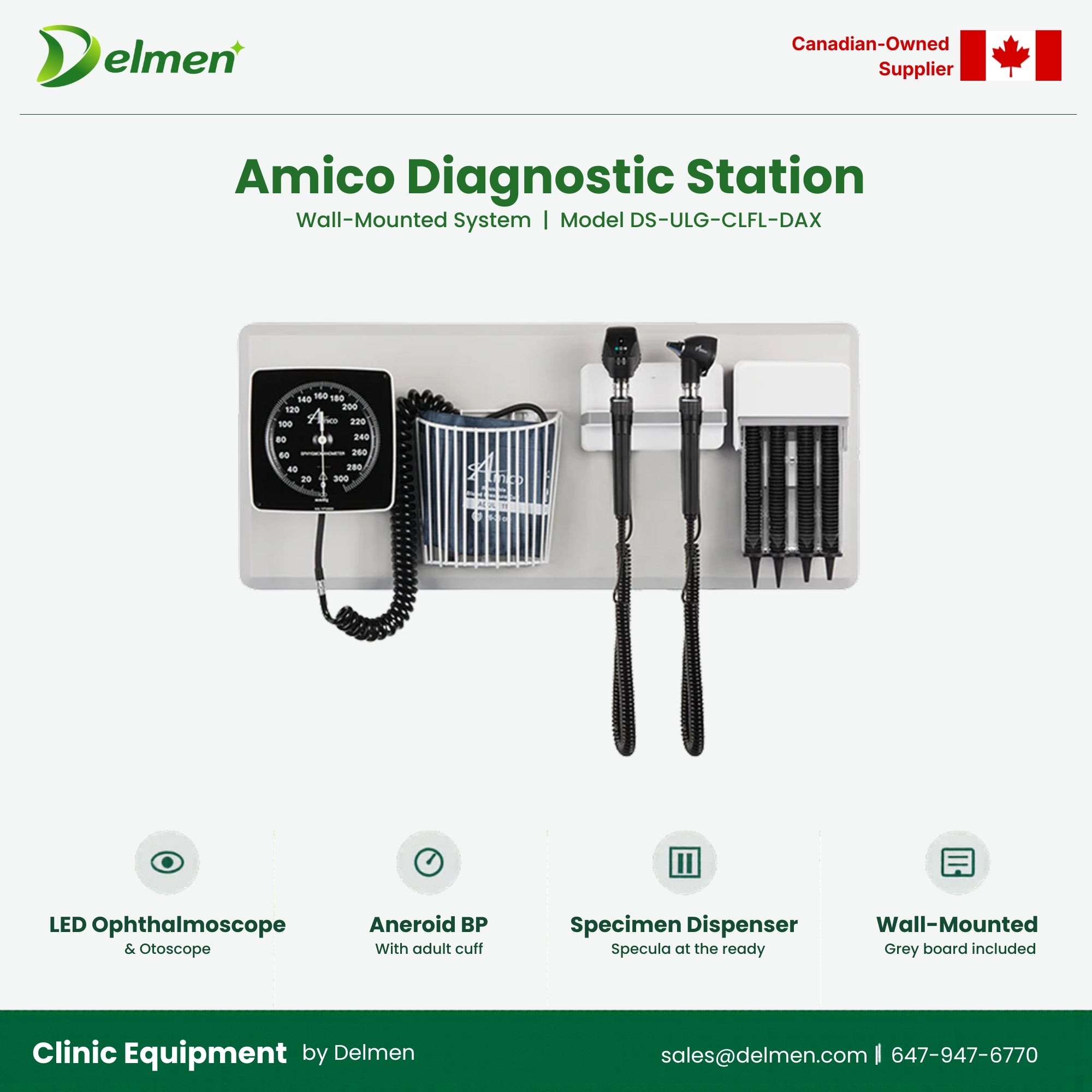

Grey wall board, transformer, and dispenser included
Title

Ships within 1–2 weeks · Canada-wide delivery

GTA white-glove install available — learn more
Title

SKU 12-202 · MODEL DS-ULG-CLFL-DAX

Health Canada MDL Class II · FDA 510(K) cleared · Canadian-made

Title

Amico DS-ULG-CLFL-DAX – Oph, Oto LED, Spec Disp, Aneroid BP, Adult Cuff, Basket, Wall Board

Wall-mounted diagnostic station with LED ophthalmoscope and otoscope, aneroid BP gauge, and specimen dispenser. Canadian-made with a 7-year base warranty and lifetime calibration. Designed for cost-conscious clinics, Canadian-content procurement, and sites prioritizing warranty length.

Title

CA

$1,250.79

Qty

Request a Quote

Warranty

7 yr base

+ lifetime calib

Wall board

Included

grey

Optics

LED

standard

Thermometer

-

Extended tier
Ophthalmoscope LED, standard
Otoscope LED
BP Gauge Aneroid + adult cuff
Specimen Dispenser Included
Thermometer Not included (available on Extended tier)
Wall Board Included, grey, pre-finished
Mounting Hardware Included
Wall Board Dimensions 34″ × 12″ approx.
Power Source AC, wall-powered
Mode Auto on/off
Plug Type IEC Type-B
Country of Manufacture Canada
Manufacturer Amico Corporation (Richmond Hill, Ontario)
Model Code DS-ULG-CLFL-DAX
SKU 12-202

Canadian-made

Manufactured in Richmond Hill, Ontario by Amico Corporation. The longest base warranty in the category, with a domestic supply chain and Canadian support channel — no cross-border logistics or support.

LED optics

LED ophthalmoscope and otoscope standard across both the Base and Extended tiers. Brighter, truer colour rendition, and far longer-lasting than halogen — no bulb replacements, no degraded illumination over time.

Lifetime calibration

Optics calibration covered for the life of the station — no recurring calibration fees, no scheduled re-cal billing, for as long as the unit is in service. Coordinated through Delmen.

Single-vendor support

One manufacturer, one warranty, one support channel. Claims, parts, and calibration all run through a single Canadian point of contact via Delmen — no third parties, no handoffs between service teams.

Wall board included

Grey pre-finished wall board, transformer, and specimen dispenser ship with the station. No separate procurement of mounting infrastructure — everything needed for installation arrives in one order.

Auto on/off power

AC wall-powered with auto on/off mode. The station activates when instruments are removed from their holders and powers down when replaced — reducing standby draw and extending component life.

Deployment contexts

Where to use the Amico DS Base

Designed for clinics prioritizing warranty length, Canadian content, and value. Typical deployments include:

Cost-Conscious Clinics

  • Budget-sensitive practices
  • Independent clinics
  • New clinic fit-outs
  • Sites with separate temperature workflow

Canadian Procurement

  • Canadian-content requirement sites
  • Public health facilities
  • Government-funded clinics
  • Domestic supply chain preference

Warranty-Priority Sites

  • Long-service-life deployments
  • High-utilization rooms
  • Sites prioritizing coverage length
  • Operators buying on total cost of ownership
BASE TIER — FOR SITES WITH A SEPARATE TEMPERATURE WORKFLOW. STEP UP TO AMICO DS EXTENDED FOR AN INTEGRATED IR THERMOMETER.
- Compound coverage

The longest base warranty in the category.

The Amico DS Base carries Amico’s compound coverage — seven years on the station base, three on the diagnostic heads, five on the BP aneroid, and lifetime optics calibration. Service, parts, and calibration coordinated through Delmen.

Lifetime

Optics Calibration

Calibration covered for the life of the station — no recurring fees.

7 Years

Base Warranty

Station base, mounting board, and structural components covered against manufacturing defects.

5 Years

BP Aneroid

Aneroid gauge covered 5 years; adult cuffs covered 3 years.

3 Years

Diagnostic Heads

Ophthalmoscope and otoscope, materials and workmanship.

- FULL COVERAGE DETAILS

Year-by-year coverage, service area across every Canadian province and territory, what’s covered and not covered, and the full claim process. All warranty service and calibration coordinated through Delmen.

Certified for regulated clinical environments.
Made in Canada
Manufactured in Richmond Hill, Ontario by Amico Corporation.
Health Canada · Class II
Medical Device Licence, Class II. Manufacturer-held regulatory authorization for sale in Canada.
510(k) Cleared
FDA 510(k) premarket clearance. Manufacturer-held authorization for US market.
COUNTRY OF MANUFACTURE Canada (Richmond Hill, Ontario) — domestic supply chain and Canadian warranty support.
HEALTH CANADA Medical Device Licence, Class II (manufacturer-held). Meets Health Canada requirements for diagnostic instruments used in clinical settings.
FDA PREMARKET 510(k) cleared (manufacturer-held). Authorized for sale in the United States.
QUALITY MANAGEMENT ISO 13485 (manufacturer). Quality management system certified for medical device design and manufacture.
ELECTRICAL SAFETY CSA · IEC 60601-1. Certified for North American clinical electrical safety standards.
CALIBRATION Lifetime, manufacturer-backed. Coordinated through Delmen — no direct manufacturer contact required.

Delmen distributes the Amico DS Base under the manufacturer’s regulatory authorizations. Warranty service, calibration, and ongoing support coordinated through Delmen.

Amico DS Base Spec Sheet
PDF · DS-ULG-CLFL-DAX · SKU 12-202
coming soon...
Installation Guide
PDF · Wall-mount station
coming soon...
Wall Board Mounting Template
PDF · 34″ × 12″
coming soon...
Warranty & Calibration Terms
PDF · Amico Corporation
coming soon...
Documents are available upon request for pre-purchase review. Contact sales@delmen.com with your order number or SKU.

-FAQ

Amico DS Base common questions

Procurement-focused. We respond within 24 hours on business days.

Procurement-focused. We respond within 24 hours on business days.

Still have questions?

Send us your room dimensions and we'll confirm this is the right model before you order.

Request a Quote

What's the difference between the Base and Extended tiers?

The Base ships with LED ophthalmoscope and otoscope, aneroid BP gauge, and specimen dispenser at CA$1,250.79. The Extended tier adds an integrated infrared (IR) thermometer mounted at the wall station — fast, non-contact temperature readings without a separate handheld. Everything else — the LED optics, Canadian manufacture, 7-year base warranty, and lifetime calibration — is identical. If your site already runs a separate temperature workflow, Base is the right tier.

Is the lifetime calibration handled by Amico or coordinated through Delmen?

Coordinated through Delmen. Calibration is an Amico-backed entitlement for the life of the station, but you don't deal with the manufacturer directly — Delmen schedules and coordinates calibration service as part of single-vendor support. One contact for warranty, parts, and calibration across the life of the unit.

Does “Canadian-made” qualify the unit for Canadian-content procurement requirements?

The Amico DS Base is manufactured by Amico Corporation in Richmond Hill, Ontario. Whether that satisfies a specific Canadian-content threshold depends on how your procurement framework defines and measures domestic content — different programs use different rules and percentages. We can supply the manufacturer's country-of-origin documentation to support your evaluation; confirm the qualifying criteria with your procurement office before relying on it.

How does the 7-year base warranty compare to the Welch Allyn 5-year?

Amico's base coverage runs seven years on the station base versus Welch Allyn's five years across components, and Amico adds lifetime optics calibration that the Welch Allyn warranty doesn't include. The trade-off is structure: Amico's coverage is compound (different terms for base, heads, BP aneroid, and calibration), while Welch Allyn is a single flat 5-year term across all components. Longer base coverage and lifetime calibration favour Amico for long-service-life and high-utilization deployments; the Welch Allyn is US-made with a simpler single-term warranty.

Can we add the IR thermometer later, or do we need the Extended tier upfront?

The integrated IR thermometer is a configuration of the Extended tier, not a field-add accessory — it's mounted and wired at the wall station during manufacture. If you anticipate needing integrated temperature at the wall, specify the Extended tier upfront. Sites that adopt a separate handheld thermometer later can stay on the Base; the two tiers are otherwise identical, so there's no downside to starting on Base if temperature isn't a wall-station requirement today.
