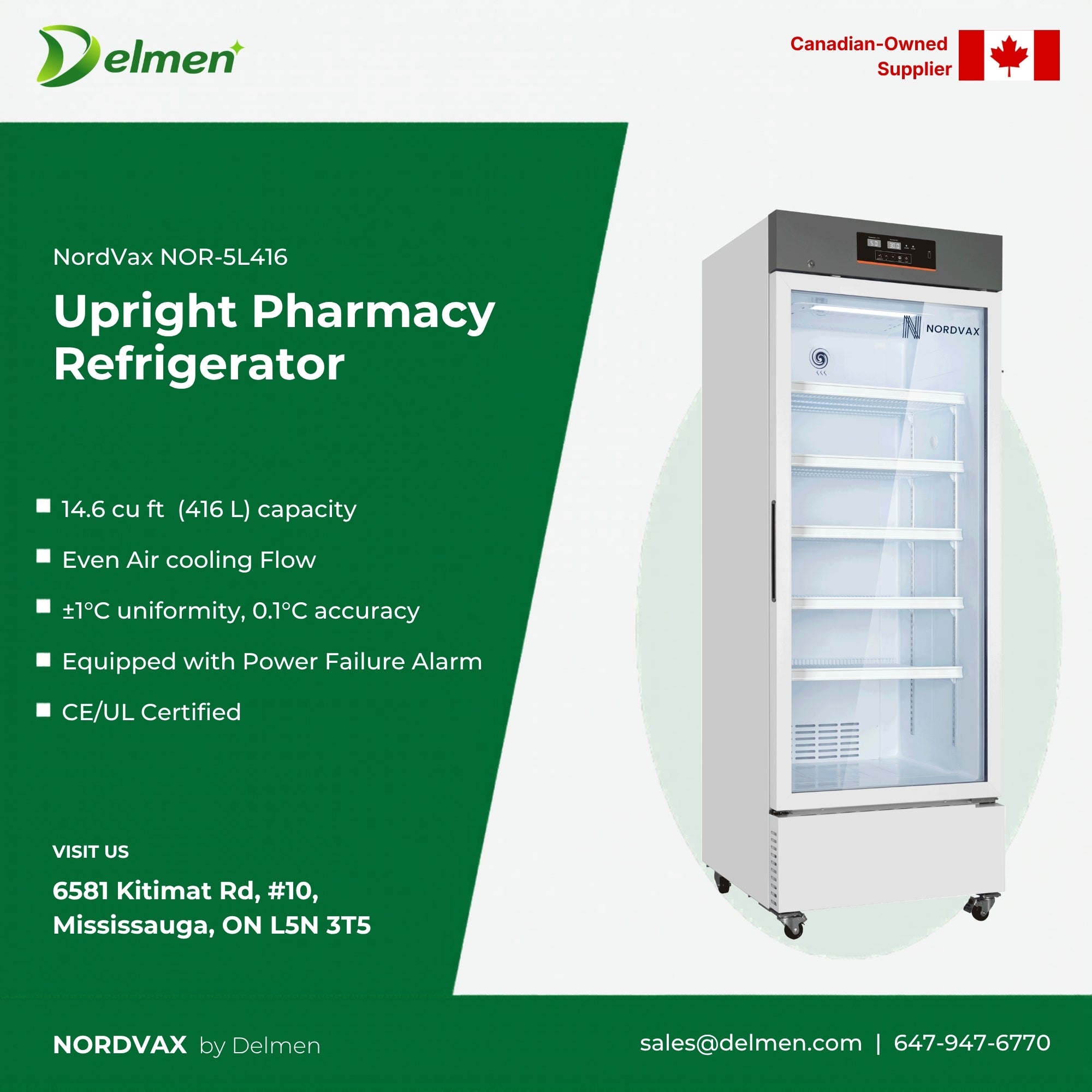

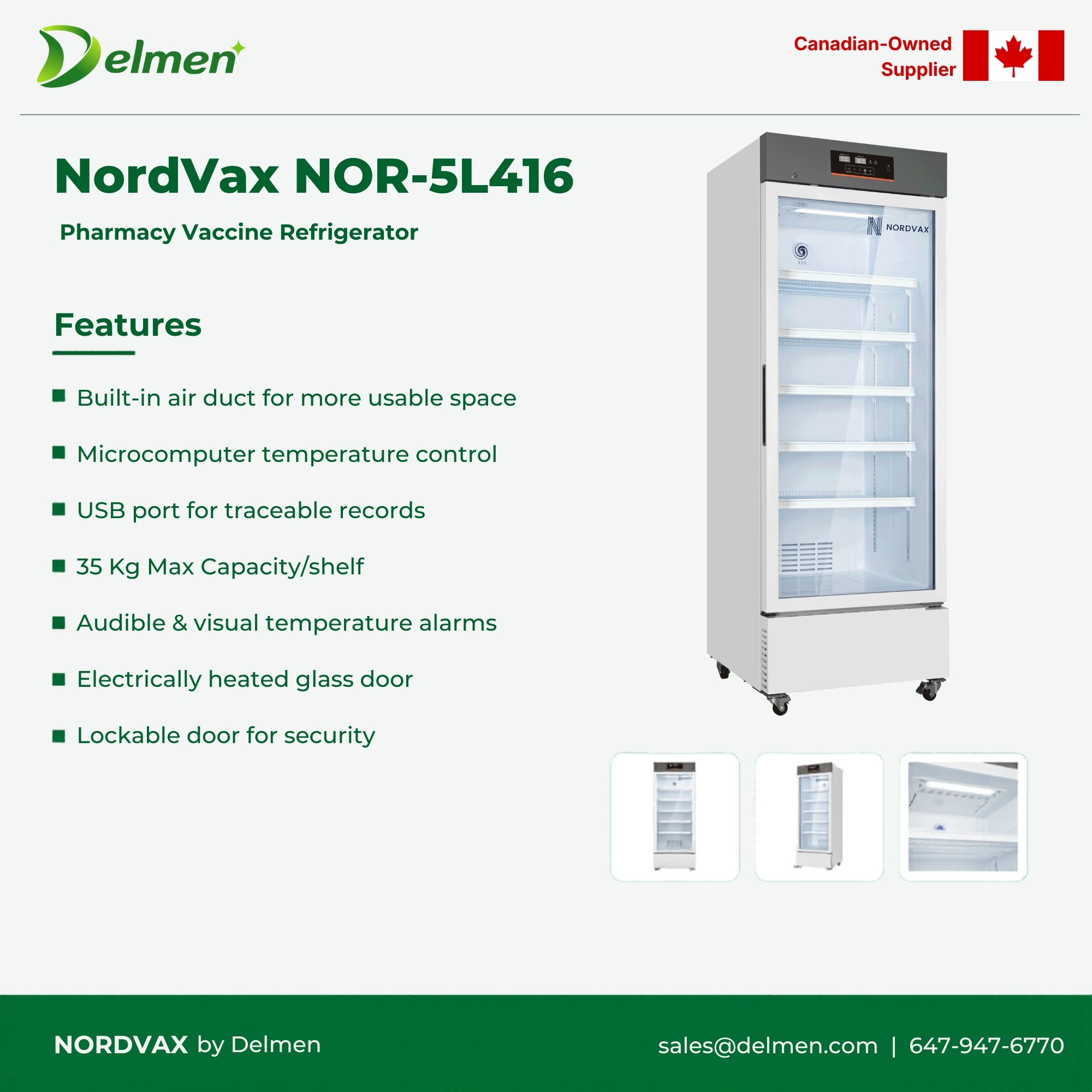

NordVax NOR-5L416 (14.6 Cu.ft) Upright Vaccine/Medical Refrigerator

Built for busy pharmacies handling higher volumes. Consistent 2–8°C performance with spacious, organized storage.

Title

CA

$3,950.00

Qty

Request a Quote

Temperature

2– 8°C

Controlled

Capacity

14.70

cubic feet

Shelves

5

Adjustable

Warranty

10 yrs

Compressor · 1 yr parts & labour (no lemon)

Storage Volume 416 L (14.70 cu ft)
Exterior (W × D × H) 27.2″ × 25.7″ × 75.6″
Net / Gross Weight 88 kg / 97 kg · 194 lb / 214 lb
Shelves 5 adjustable, with label-card holders
Door Electric anti-condensation heated glass, self-closing, key-locked
Range 2 °C to 8 °C
Cooling System Forced air, top cooling
Refrigerant R600a hydrocarbon (CFC-free, low GWP)
Voltage 115 V / 60 Hz · standard 15 A outlet
Rated Power 260 W
Ventilation Clearance 4″ rear · 2″ sides minimum
SKU 11-004

Heated glass door

Anti-condensation outer pane kept just above dew point. Contents visible without opening the door — reduces door-open frequency and stabilizes interior temperature.

Calibrated thermometer

Digital display with min/max recall for daily log readings. Calibration certificate included. Supports Health Canada vaccine storage documentation requirements.

High/low temperature alarm

Audible and visual alerts triggered by door-open excursion and temperature deviation. Factory calibrated before shipment.

USB data port

Direct USB extraction of temperature logs for compliance records. No proprietary software required — exports as standard CSV for audit and inspection files.

Adjustable shelving

Five reconfigurable shelves and storage baskets. Adapts to vial trays, insulin pens, and biologics storage formats without additional hardware.

Lockable door

Keyed lock standard. Meets College of Pharmacy requirements for controlled-substance-adjacent storage areas.

Self-closing door

Hinge mechanism returns the door to a sealed position automatically after each use. Prevents temperature drift from accidentally left-open doors during high-traffic dispensing periods.

Top cooling system

Patented forced-air cooling distributed from the top of the cabinet ensures inner temperature uniformity within ±0.5°C across all shelves. Eliminates hot and cold zones common in side-cooled units.

High-efficiency inverter compressor

Variable-speed compressor adjusts cooling output based on real-time demand. Reduces energy consumption by ~35% versus standard fixed-speed compressors and operates at significantly lower noise levels.

Applications

Where to use NOR-5L416

Designed for environments where temperature integrity must be continuously maintained and documented for regulatory compliance. Typical deployments include:

Healthcare & Clinical

  • Retail and hospital pharmacies
  • Hospitals and long-term care
  • Medical and walk-in clinics
  • Dental and orthodontic offices
  • Vaccination centres

Research & Specialty

  • Clinical and research laboratories
  • Veterinary clinics and animal hospitals
  • IVF and fertility clinics
  • Biotech manufacturers
  • Public health units

Storage & Logistics

  • Blood banks and plasma centres
  • Cold-chain logistics warehouses
  • Distribution and fulfillment hubs
  • Food and beverage processing
  • Specimen and tissue storage
ALL DEPLOYMENT CONTEXTS SUPPORTED BY HEALTH CANADA & PUBLIC HEALTH COMPLIANT DOCUMENTATION
- Our warranty

Ten years of confidence behind every NordVax.

Every NordVax pharmacy and vaccine refrigerator is backed by a coverage package designed for the realities of cold-chain operation — ten years on the compressor, two full years on parts and labour, and a year-one full unit replacement promise.

10 Years

Compressor Warranty

Compressor part covered against manufacturing defects.

2 Years

Full Parts & Labour

Every part. Every labour hour. Including refrigerant.

1 Year

Replacement Promise

Verified compressor failure or refrigerant leak in year one — new unit, no questions.

- FULL COVERAGE DETAILS

Year-by-year coverage, service area across every Canadian province and territory, what's covered and not covered, and the full claim process.

Certified for regulated cold-chain environments.
UL Listed
Tested and certified by Underwriters Laboratories for North American electrical safety standards.
HEALTH CANADA Meets Health Canada vaccine storage and handling guideline requirements for continuous 2–8 °C monitoring.
PUBLIC HEALTH AGENCY Compatible with Public Health Agency of Canada (PHAC) cold-chain management requirements.
NSF / ANSI 456 Designed to meet the performance requirements of NSF/ANSI 456 vaccine storage standard when paired with a compliant data logger.
REFRIGERANT R600a hydrocarbon — CFC-free, low global warming potential. Compliant with Canadian refrigerant regulations.
PROVINCIAL PHARMACY COLLEGES Configuration supports inspection readiness for provincial pharmacy regulatory authorities across Canada.
NOR-5L416 Specification Sheet
PDF · SKU 11-004
coming soon...
Installation & Ventilation Guide
PDF · Upright series
coming soon...

-FAQ

NOR-5L416 — common questions.

Procurement-focused. We respond within 24 hours on

business days.

Procurement-focused. We respond within 24 hours on business days.

Still have questions?

Send us your room dimensions and we'll confirm this is the right model before you order.

Request a Quote

Is this model right for a walk-in vaccine clinic running 100+ doses a day?

Yes. The NOR-5L416 at 14.70 cu ft is the standard fit for walk-in flu, travel, and family practice clinics in the 80–150 daily dose range. The heated glass door lets staff confirm inventory without opening — which matters for temperature consistency at high throughput. For peak campaign periods (flu season, school programs), many clinics pair this unit with an NOR-5L42 under-counter as overflow storage. If your clinic handles 200+ doses per shift or runs central fill, step up to the NOR-5L606 or NOR-5L756.

Does the heated glass door affect energy consumption or temperature stability?

The heated glass door uses a low-wattage anti-condensation element that keeps the door panel just above the dew point — this is the standard across all NOR-5L models. The primary benefit is reducing door-open frequency: staff can see stock levels at a glance without triggering a temperature cycle. In high-throughput settings, this more than offsets the minor energy draw of the heating element. Overall energy use for the NOR-5L416 is consistent with standard 115V pharmacy refrigeration at this capacity.

What ventilation clearance does this unit require?

The NOR-5L416 requires a minimum of 4″ rear clearance and 2″ side clearance on both sides. Do not install in an enclosed cabinet or alcove without adequate rear ventilation — insufficient clearance is the leading cause of compressor overload in pharmacy settings. Front clearance should allow the door to open fully (approximately 27.2″ width + door swing). If your space is tight, share your room dimensions with us before ordering and we'll confirm fit.

Can a lock be added for controlled-substance-adjacent storage?

The NOR-5L416 ships with a lockable door as standard — keyed lock, included. This meets College of Pharmacy guidelines for pharmaceutical storage areas and is sufficient for vaccine and controlled-substance-adjacent refrigerated stock. For Schedule I–IV controlled narcotic storage specifically, a dedicated narcotic safe with a UL-rated time-delay lock is required by provincial pharmacy regulators — the refrigerator alone does not satisfy those requirements. See our Narcotic Safes category for StrongBox and Advance Series options.

What does white-glove delivery include for an upright model this size?

The NOR-5L416 ships upright on a pallet. GTA white-glove delivery includes inside placement into your suite or clinic area (not lobby or curbside drop), unpacking, and removal of all packaging materials. We do not include electrical connection — that's coordinated with your electrician or contractor. If you need us to align with your contractor on placement, mounting, or site requirements, we can do that at no extra charge — just let us know at the time of order. Contact us with your city, room dimensions, and target install date to confirm scope and schedule.

-Related products

Step up, step down, or add battery backup.

View All

-Pick by use

Where does this model fit your operation?

NOR-5L416 is the standard fit for the vaccine clinic and family practice path. See

where other models sit relative to your volume and footprint needs.

01 · Front-counter dispensary

Small footprint. Dispensing-station ready.

Sits beside the dispensing workstation — clears most under-counter cabinets at 32″ height

Handles 30–80 door-opens per day

Standard 15A outlet, no dedicated circuit

Typical: independent pharmacy keeping 30–60 days of vaccines and insulin within arm's reach

Title

02 · Vaccine clinic / family practice

Daily-throughput uprights. Heated glass for stock checks.

Heated glass lets staff confirm stock levels without opening the door — critical for temperature stability

Typical: walk-in flu and travel clinic running 80–150 doses per day, restocked weekly from a central depot

Often paired with an NOR-5L42 under-counter as overflow during campaign season

Needs 4″ rear and 2″ side ventilation clearance

Title

03 · Long-term care & central storage

High-capacity uprights and double-door for bulk storage.

Hospital pharmacy or LTC central fill — bulk vaccine, biologics, and refrigerated compounds in one room

Sized for 200+ door-opens per shift

Lockable doors standard; double-door models ship on a pallet with lift-gate service

Consider TempGuard series for sites with unreliable power infrastructure

Title
