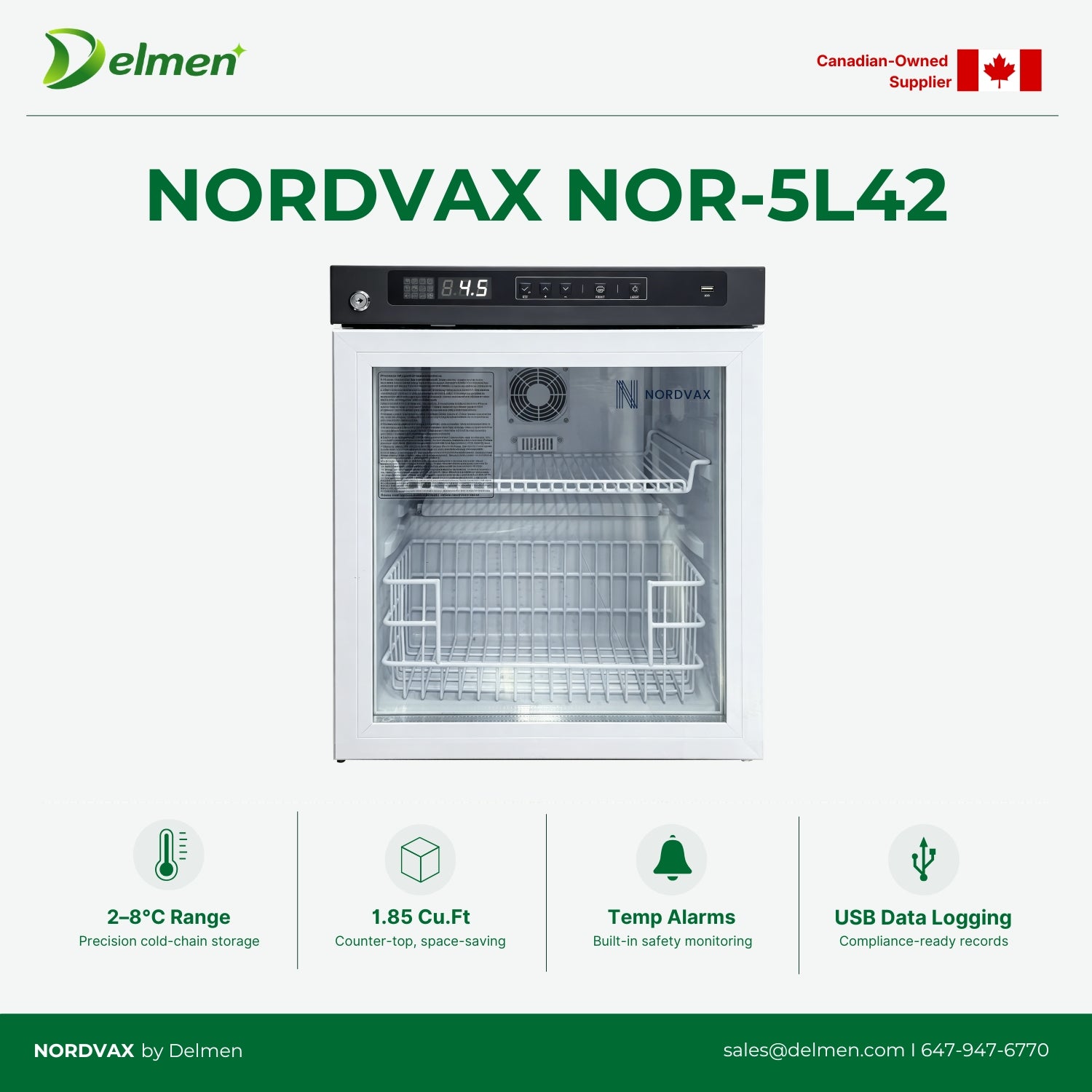

NordVax NOR-5L42 (1.85 Cu.ft) Counter Top Vaccine/Medical Refrigerator

Compact under-counter medical refrigerator with low-emissivity glass door for clear interior visibility. Maintains a controlled 2–8°C environment with audible and visual alarms. Designed for small dispensing stations, clinic counters, and confined lab spaces.

Title

CA

$1,350.00

Qty

Request a Quote

Temperature

2– 8°C

Controlled

Capacity

1.48

cubic feet

Shelves

1+1

Shelf + drawer

Warranty

10 yrs

Compressor · 2 yr parts & labour (no lemon)
Storage Volume 42 L (1.48 cu ft)
Exterior (W × D × H) 17.7" × 18.1" × 22.4"
Net / Gross Weight 23 kg / 25 kg · 51 lb / 55 lb
Shelves 1 shelf + 1 drawer · 12 kg max each
Door Low-E glass, lockable
Range 2 °C to 8 °C
Cooling System Forced air, top cooling
Refrigerant R600a hydrocarbon (CFC-free, low GWP)
Voltage 115 V / 60 Hz · standard 15 A outlet
Rated Power 1.5 A
Ventilation Clearance 4" rear · 2" sides minimum
SKU 11-001

Heated glass door

Anti-condensation outer pane kept just above dew point. Contents visible without opening the door — reduces door-open frequency and stabilizes interior temperature.

Calibrated thermometer

Digital display with min/max recall for daily log readings. Calibration certificate included. Supports Health Canada vaccine storage documentation requirements.

High/low temperature alarm

Audible and visual alerts triggered by door-open excursion and temperature deviation. Factory calibrated before shipment.

USB data port

Direct USB extraction of temperature logs for compliance records. No proprietary software required — exports as standard CSV for audit and inspection files.

Adjustable shelving

Five reconfigurable shelves and storage baskets. Adapts to vial trays, insulin pens, and biologics storage formats without additional hardware.

Lockable door

Keyed lock standard. Meets College of Pharmacy requirements for controlled-substance-adjacent storage areas.

Battery backup

Sealed lead-acid backup keeps display and alarms active during power outages. Compact under-counter footprint includes integrated battery — no external UPS required for short-term protection.

Top cooling system

Patented forced-air cooling distributed from the top of the cabinet ensures inner temperature uniformity within ±0.5°C across all shelves. Eliminates hot and cold zones common in side-cooled units.

High-efficiency inverter compressor

Variable-speed compressor adjusts cooling output based on real-time demand. Reduces energy consumption by ~35% versus standard fixed-speed compressors and operates at significantly lower noise levels.

Applications

Where to use NOR-5L42

Designed for environments where temperature integrity must be continuously maintained and documented for regulatory compliance. Typical deployments include:

Healthcare & Clinical

  • Retail and hospital pharmacies
  • Hospitals and long-term care
  • Medical and walk-in clinics
  • Dental and orthodontic offices
  • Vaccination centres

Research & Specialty

  • Clinical and research laboratories
  • Veterinary clinics and animal hospitals
  • IVF and fertility clinics
  • Pharmaceutical and biotech manufacturers
  • Public health units

Storage & Logistics

  • Blood banks and plasma centres
  • Cold-chain logistics warehouses
  • Distribution and fulfillment hubs
  • Food and beverage processing
  • Specimen and tissue storage
ALL DEPLOYMENT CONTEXTS SUPPORTED BY HEALTH CANADA & PUBLIC HEALTH COMPLIANT DOCUMENTATION
- Our warranty

Ten years of confidence behind every NordVax.

Every NordVax pharmacy and vaccine refrigerator is backed by a coverage package designed for the realities of cold-chain operation — Ten years on the compressor, two full years on parts and labour, and a year-one full unit replacement promise.

10 Years

Compressor Warranty

Compressor part covered against manufacturing defects.

2 Years

Full Parts & Labour

Every part. Every labour hour. Including refrigerant.

1 Years

Replacement Promise

Verified compressor failure or refrigerant leak in year one — new unit, no questions.

- FULL COVERAGE DETAILS

Year-by-year coverage, service area across every Canadian province and territory, what's covered and not covered, and the full claim process.

Certified for regulated cold-chain environments.
UL Listed
Tested and certified by Underwriters Laboratories for North American electrical safety standards.
HEALTH CANADA Meets Health Canada vaccine storage and handling guideline requirements for continuous 2–8 °C monitoring.
PUBLIC HEALTH AGENCY Compatible with Public Health Agency of Canada (PHAC) cold-chain management requirements.
NSF / ANSI 456 Designed to meet the performance requirements of NSF/ANSI 456 vaccine storage standard when paired with a compliant data logger.
REFRIGERANT R600a hydrocarbon — CFC-free, low global warming potential. Compliant with Canadian refrigerant regulations.
PROVINCIAL PHARMACY COLLEGES Configuration supports inspection readiness for provincial pharmacy regulatory authorities across Canada.
NOR-5L42 Specification Sheet
PDF · SKU 11-001
coming soon...
Installation & Ventilation Guide
PDF · Upright series
coming soon...
Documents are available upon request for pre-purchase review. Contact sales@delmen.com with your order number or SKU.

-FAQ

NOR-5L42 —

common

questions.

Procurement-focused. We respond within

24 hours on business days.

Still have questions?

Send us your room dimensions and we'll confirm this is the right model before you order.

Request a Quote

Is the NOR-5L42 the right fit for a single dispensing station?

Yes. The NOR-5L42 at 1.48 cu ft fits beside a standard dispensing workstation and clears most under-counter cabinets at the cabinet's 22.4″ height. It's designed for clinic counters, small lab benches, and pharmacy dispensing stations where staff need vaccines or biologics within arm's reach. Typical use: 30–80 door-opens per day, weekly restock from a central depot. For higher throughput, step up to an upright like the NOR-5L316 or NOR-5L416.

What outlet does the NOR-5L42 require?

Standard 115V / 60Hz · 15A outlet, no dedicated circuit. Rated current is 1.5 A, well within standard residential and commercial wall outlet capacity. Plug-and-go installation — no electrician required for standard placement. The unit ships with a 16 h · 12 V SLA battery backup that keeps the alarm and display active during brief outages.

How much clearance does the NOR-5L42 need for ventilation?

Minimum 4″ rear · 2″ sides minimum. Do not install in a fully enclosed cabinet without rear ventilation — insufficient airflow is the leading cause of compressor overload. Front clearance should allow the door to open fully. If your space is tight or you're installing inside a cabinet, share your dimensions and we'll confirm fit before ordering.

How does the heated glass door behave on an under-counter unit?

The NOR-5L42 uses a low-emissivity glass door designed to prevent condensation while maintaining interior visibility. Contents are visible without opening, which reduces door-open frequency and helps maintain temperature stability — especially important on smaller units where each door-open represents a larger percentage of the cabinet volume.

Is white-glove install available for the NOR-5L42?

Yes for GTA delivery. White-glove includes inside placement under your counter or in your designated dispensing area, unpacking, and removal of all packaging. We do not include electrical connection — that's plug-in to standard 15A outlet. For sites outside the GTA, threshold delivery applies and our partner couriers can place the unit at your loading dock or main entrance. Contact us with your address and target install date to confirm scope.
