GREEN SERIES 777 Integrated Wall System

Welch Allyn

GREEN SERIES 777 Integrated Wall System

Title
$1,537.96

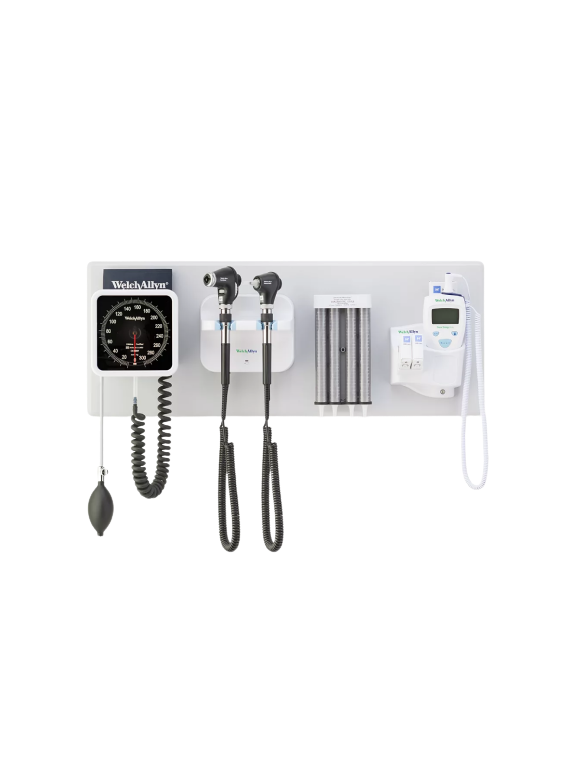

Welch Allyn Green Series 777 Integrated Wall System with Coaxial LED Ophthalmoscope, MacroView Basic LED Otoscope, BP Aneroid, Ear Specula Dispenser, and SureTemp Plus Thermometer

3.5V Ophthalmoscope & MacroView Otoscope
Title

SureTemp 690 Thermometer | Aneroid BP with Adult Cuff
Title

KleenSpec Specula Dispenser | Wall-Mounted System
Title

Auto On/Off | Energy Efficient Design

Warranty: 5 Year Manufacturer Warranty

Ships Across Canada

Fast & reliable delivery

Installation Available

Professional setup on request

  • Description

  • Configurations

  • Documents

  • Parts & Accessories

  • Warranty

  • Questions

With the Welch Allyn Green Series 777 Integrated Wall System, all the essential medical diagnostic tools you need to maximize productivity as you capture patient in-take and vital signs are within arm's reach. Configure to meet your facility needs with options for a thermometer, a blood pressure gauge, otoscopes, and ophthalmoscopes.

With the Welch Allyn Green Series 777 Integrated Wall System, all the essential medical diagnostic tools you need to maximize productivity as you capture patient in-take and vital signs are within arm's reach. Configure to meet your facility needs with options for a thermometer, a blood pressure gauge, otoscopes, and ophthalmoscopes.

Ophthalmoscopes

The Coaxial Ophthalmoscope enables easier entry into the eye, a larger field of view, and reduced glare compared to standard ophthalmoscopes. It has 18 unique aperture/filter combinations, and 28 focusing lenses with a range of -25 to +40 diopters. (Optional)

The PanOptic Basic Ophthalmoscope has a 20x larger viewing area than standard ophthalmoscopes and a long-lasting LED that reduces the need for lamp replacement. Compatible with 3.5 V power sources. (Optional)

The PanOptic Plus Ophthalmoscope features quick eye alignment lights on the patient's side to help direct the patient's gaze and works optically or digitally with the iExaminer Pro app. Mount a smartphone on the back of the tool and digitally view the patient's retina on a screen. Compatible with 3.5 V power sources. (Optional)

Otoscopes

The MacroView Basic Otoscope offers a 3x larger viewing area for ear exams when compared to views through a standard or pocket otoscope. The LED illumination lasts longer than standard bulbs reducing the need for lamp replacement. Compatible with 3.5 V power sources. (Optional)

The MacroView Plus Otoscope allows for optical or digital viewing to easily capture and share ear images for consultation. Use the included iExaminer SmartBracket to mount a smartphone with the iExaminer Pro app available on Android and iOS. Compatible with 3.5 V power sources. (Optional)

Ear Specula Dispenser

The LumiView Clear Single-Use Ear Specula dispenser for otoscopes gives an 8x brighter view when compared to a black ear speculum. (Included)

Blood Pressure Aneroid

Provides certified accuracy to reduce errors and improve patient care with a recessed, laser-engraved dial face and a high-contrast pointer. Reduce the cost of ownership with a lifetime calibration warranty. Includes Size-11 Flexiport Reusable Blood Pressure Cuff(Optional)

Thermometer

The SureTemp Plus Thermometer features technology that sets the standard for speed and accuracy. The large LCD displays Fahrenheit or Celsius, the shelf stores 25 probe covers, and the recall button shows the last temperature recorded. Captures oral readings in approximately 4-6 seconds and pediatric/adult axillary and rectal readings in 10-15 seconds. (Optional)

Models: 777-PM3WAS-US, 777-PM3WAX-US, 777-PM3WXS-US, 777-PM3WXX-US, 777-PM3XXX-US, 777-PM2WAS-US, 777-PM2WAX-US, 777-PM2WXS-US, 777-PM2WXX-US, 777-PM2XXX-US, 777-SM2XXX, 777-SM2WXX, 777-SM2WAS, 777-SM2WAX, 777-PM2WCX-US, 777-PM3WCX-US

Comming

Comming
Coiled Cord and Handle
Assembly
Coiled Cord and Handle Assembly

Part #: 104299

Coiled Cord and Handle Assembly, for 767, 777 Wall Transformer, 777 Integrated Wall System, and Connex Integrated Wall System,
(Coil Cord Length 12 ft/3.6 m)

5-Year Limited Warranty for MacroView Plus Otoscope & PanOptic Plus Ophthalmoscope
1-Year Limited Warranty for MacroView Basic Otoscope & PanOptic Basic/Coaxial Ophthalmoscope
Lifetime Calibration Warranty for Blood Pressure Wall Aneroid
2-Year Limited Warranty for SureTemp Plus Thermometer Instrument
1-Year Limited Warranty for SureTemp Plus Thermometer Probe
90-day Limited Warranty for SureTemp Plus Thermometer Probe Well
(See user manual for more information)
To look up your warranty or to register your product, please visit the manufacturer's website.

Ask question...

What is in the box here?

2 months ago

It depends on what model you get. The device includes a wallboard, otoscope and ophthalmoscope. Optionally you can include a BP aneroid, thermometer, and mounting bracket for Connex Spot Monitor or Spot Vital SIgns 4400
